Quickship Fasteners

BUY FROM ASSEMBLYDIRECT.COM OR Call +1-517-393-5850 option 1 FOR ASSISTANCE http://www.AssemblyDirect.com



INDEX

  Bolts

  Bolts - square head or shoulder

  Molded Inserts, bushings, compression limiters

  Pins

  Rods - Bent

  Push Nuts

  Termilock - UL486 terminal screws for power connections

  TPLAST - screws for plastic assembly (thread forming, high-low, tplast60, hitorq)



 All dimensions in millimeters unless stated otherwise



BOLTS
TYPE
size
length
driver

material/

grade/ datasheet

ROHS
color
part number
description

Bulk Qty/ Box

wt

KG / m

BOLT

502600 image


M6 16 HEX

steel

jis

gr 8.8

RohS CompliantYes Clear

502600

Bolt, M6-1.0x16, Hex HD, Sems w/Lock and flat washer, Zn Triv, 8U 2,000 7.25

BOLT

11588710

M6 13 HEX

steel

gmw25

gr 8.8

RohS CompliantYes GREY

11588710

Bolt, M6-1x13, Hex Acorn Flg HD, Mat-Point, 11588710 2,500 6.58

BOLT

5054 image

M6 17

COMBI

HEX/PHIL

steel

gmw25

gr 8.8

RohS CompliantYes Clear
505400
Bolt, M6.0-1.0-6gx17, Hex Flg HD, Zn Triv Clear 3,000 5.13

BOLT

11588713 image

M6 25 HEX

steel

gmw25

gr 8.8

RohS CompliantYes Grey
11588713
Bolt, M6-1.0x25, Hex Flg HD, Mat-Point, 11588713 1,500 8.40

BOLT

503000 image

M6 22.5 HEX

steel

ford

gr 8.8

RohS CompliantYes Grey
503000
Bolt, M6-1.0x22.5, Hex HD PLT w/Washer,  N606676-S439 1,800 9.00

BOLT

11588714 image

M6 30 HEX

steel

gmw25

gr 8.8

RohS CompliantYes Grey
11588714
Bolt, M6-1.0X30, Hex Acorn Flg Hg HD, 11588714 1,500 9.25

BOLT

11588715 image

M6 35 HEX

steel

gmw25

gr 8.8

RohS CompliantYes Grey
11588715
Bolt, M6-1.0x35, Hex Flg HD, 11588715 1,000 10.80

BOLT

11588732

M6   HEX

steel

gmw25

gr 8.8

RohS CompliantYes Grey
11588732


BOLT

11609577 image

M6 55 HEX

steel

gmw25

gr 8.8

RohS CompliantYes Grey
11609577
Bolt, M6-1.0x55, Hex Flg HD, 11609577 900 15.15

BOLT

503100 image

M8 25 HEX

steel

ford

gr 8.8

RohS CompliantYes Grey
503100
Bolt, M8-1.25x25 Hex Flg HD, W506023-S439 1,500 14.00
SQUARE HEAD OR SQUARE SHOULDER
TYPE
size
length
driver

material/

grade/ datasheet

ROHS
color
part number
description

Bulk Qty/ Box

WT kg / m



SQUARE

503200 image

M6 25 NONE STEEL RohS CompliantYES Black 503200 Carriage Bolt, M6-1.0x25 , Unslotted Wafer HD, Square Neck,  WSD-M21P10 2,200 7.26

SQUARE

503400 IMAGE

M6 50 NONE STEEL RohS CompliantYES GREY 503400 BOT, M6-1.0X50, WAFER HEAD SQUARE, FORD S439 750

SQUARE

11XXX IMAGE

M6 22 NONE STEEL GR 8 RohS CompliantYES BLACK 11XXXXXX
Molded inserts * Bushings * Compression limiters
TYPE
size
Total length

material/

grade/ datasheet

ROHS
color
part number
description

Bulk Qty/ Box

wt

KG / m

BUSHING

506000 image

8x11 oval 8 height

brass

C360

Molded-Insert-Plastic-Datasheet

N/A

Natural Brass

506000 Brass Oval Bushing, Hole size 18.25x8
2,000
6.80

INSERT

504600 insert

1/2-13 2-1/4"

STEEL 12L14

Molded-Insert-Plastic-Datasheet

NO ZINC YELLOW 504600 STUD NON HEAT TREATED. MOLDED DIA 19MM, MOLDED DEPTH 22MM, EXPOSED LENGTH 35MM. USE TORQUE UNDER 60LBFT. STYLE TYPE 1


INSERT

504700 insert

1/2-13 1-5/8"

STEEL 12L14

Molded-Insert-Plastic-Datasheet

NO ZINC YELLOW 504700 NUT NON HEAT TREATED. MOLDED DIA 19MM, MOLDED DEPTH 24MM, THREAD LENGTH 18MM. STYLE TYPE 3


INSERT

504800 insert

1/2-13 1-3/4"

STEEL 12L14

Molded-Insert-Plastic-Datasheet

NO ZINC YELLOW 504800 NUT NON HEAT TREATED. MOLDED DIA 19MM, MOLDED DEPTH 26MM, THREAD LENGTH 19MM. STYLE TYPE 3


INSERT

5046900 insert

1/2-13 2"

STEEL 12L14

Molded-Insert-Plastic-Datasheet

NO ZINC YELLOW 504900 STUD NON HEAT TREATED. MOLDED DIA 19MM, MOLDED DEPTH 24MM, EXPOSED LENGTH 25MM. USE TORQUE UNDER 60LBFT. STYLE TYPE 1


INSERT

505000 insert

1/2-13 1-1/2"

STEEL 12L14

Molded-Insert-Plastic-Datasheet

NO ZINC YELLOW 505000 NUT NON HEAT TREATED. MOLDED DIA 19MM, MOLDED DEPTH 22MM, THREAD LENGTH 15MM. STYLE TYPE 4


INSERT

505100 insert

1/2-13 2"

STEEL 12L14

Molded-Insert-Plastic-Datasheet

NO ZINC YELLOW 505100 STUD NON HEAT TREATED. MOLDED DIA 19MM, MOLDED DEPTH 22MM, EXPOSED LENGTH 25MM. USE TORQUE UNDER 60LBFT. STYLE TYPE 2


INSERT

505200 insert

M12 43

BRASS C360

Molded-Insert-Plastic-Datasheet

N/A NATURAL BRASS 505200 NUT MOLDED DIA 19MM, MOLDED DEPTH 24MM, THREAD LENGTH 19MM. STYLE TYPE 3

KNURL PINS
TYPE
size
length
knurl type

material/

grade/ datasheet

ROHS
color
part number
description

Bulk Qty/ Box

wt

KG / m

KNURL PIN

502200

3 34 Diamond Knurl steel

RohS Compliant

Yes

Black 502200 DiamOND Knurl, 3x34, Zn Black, 10,000 1.89

KNURL PIN

502500

5 35 Diamond Knurl steel

RohS Compliant

Yes

Clear 502500 DiamOND Knurl, 5x35, Zn Triv Clear 4,000 5.33

KNURL PIN

504500

3 20 Straight Knurl steel

RohS Compliant

Yes

Clear 504500 Straight Knurl, 3x20, Zn Triv Clear, 5 Microns 4,000 1.10
RODS - BENT
TYPE
size
length

material/

grade/ datasheet

ROHS
color
part number
description

Bulk Qty/ Box

wt

KG / m

ROD

503600 image

4 42 steel

RoHS Compliant

Yes

Clear 503600 Bent Rod, 4mm Diameter 2,000 6.70
PUSH NUTS
TYPE

shaft

size

outer

dia

material/

grade/ datasheet

ROHS
color
part number
description

Bulk Qty/ Box

wt

KG / m

PUSH-NUT

504300

8 16 spring steel

RohS Compliant

Yes

Clear 504300 Push Nut, 0.43x7.9x16, Zn Triv Clear+Bake+48 Hrs NSS 12,000 0.45

PUSH-NUT

504400 image

10 18.5 spring steel

RohS Compliant

Yes

Black 504400 Push Nut, 0.30x9.3x18.5, Zn Phosphate Black+Oil+Bake+ 48 Hrs NSS 8,000 0.50
TERMILOCK (SCREWS FOR ELECTRICal connections )
TYPE
size
length
driver

material/

grade/ datasheet

ROHS
color
part number
description

Bulk Qty/ Box

wt

KG / m

TERMINAL

144000 image

M3.5 7 COMBI PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571440 Termilock, M3.5-0.6x7.2-6g, TS Ch HD Combo, Clamp Type 1, Zn Yellow 1,000 1.25

TERMINAL

145200 image

M3.5 9.5 COMBO PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571452 Termilock, M3.5-0.6x9.5, Pan HD Combo Drive, Clamp Type 3, Zn Yellow 1000

TERMINAL

M3.5 9 COMBI PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571622 Termilock, M3.5-0.6x9, Pan HD Combo Drive, Clamp Type 1, Zn Yellow 1,000 1.50

TERMINAL

145500 image

M3.5 9.5 COMBO PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571455 Termilock, M3.5-0.6x9.5, Pan HD Combo Drive, Clamp Type 3, Zn Yellow 1,000

TERMINAL

16200 image

M3.5 9.5 COMBO PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571620 Termilock, M3.5-0.6x9.5, Pan HD Combo Drive, Clamp Type 3, Zn Yellow

TERMINAL

162100 image

M3.5 8 COMBO PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571621 Termilock, M3.5-0.6x8, Pan HD Combo Drive, Clamp Type 3, Zn Yellow 1,000

TERMINAL

M3.5 9.5 COMBO PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571441 Termilock, M3.5-0.6x9.5, Pan HD Combo Drive, Clamp Type 1, Zn Yellow 1,000

TERMINAL

144400 image

M4 11 COMBI PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571444 Termilock, M4.0-0.7-6gx11, Ch HD Combo Drive, Clamp Type 2, Zn Yellow 500 2.50

TERMINAL



M4 11 COMBO PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571453 Termilock, M4-0.7x11, Pan HD Combo Drive, Clamp Type 3, Zn Yellow 5,000

TERMINAL

505900 image

M4 12 COMBI PHIL/SLOT

ss316

Terminal-Screws-Datasheet

RoHS Compliant

Yes

Stainless natural 805059 Termilock, M4x0.7x12, Pan HD Combo Drive, Clamp Type 5, Stainless Steel 7,000 4.20

TERMINAL

144200 image

6-32 8 COMBI PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571442 Termilock, 6-32x5/16, Pan HD Combo Drive, Clamp Type 1, Zn Yellow 1,000 1.25

TERMINAL

144500 image

8-32 11 COMBO PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571445 Termilock, 8-32x7/16, Pan HD Combo Drive, Clamp Type 2, Zn Yellow 500

TERMINAL

160900 image

8-32 9.5 COMBI PHIL/SLOT

steel

Terminal-Screws-Datasheet

optional Zinc Plating Yellow 571609 Termilock, 8-32x3/8, Pan HD Combo Drive, Zn Yellow 500 2.70

TERMINAL

D105 image

    COMBI PHIL/SLOT

steel

Terminal-Screws-Datasheet

RoHS Compliant

Yes

tin Clear d105
TPLAST ( SCREWS FOR PLASTIC assembly )
TYPE
bY THD
size
PITCH
length
driver

material/

grade/ datasheet

rohs
color
part number
description
Bulk Qty/ Box

wt

KG / m

THREAD FORMING SCREWS - ROUND SHANK

TPLAST30

501200 image

4.0 1.79 12 PHIL

steel

ford

RoHS Compliant

Yes

Black 805012 TPlast30, 4.0-1.7x12, Phil Drive, Phos/Ecoat 12,000 1.55

TPLAST30

501300 image

4.0 1.37 13 HEX

steel

ford

RoHS Compliant

Yes

Black 805013 TPLAST30, 4.0-1.3x12, Hex Flg HD , W707658-S424 10,000 1.85

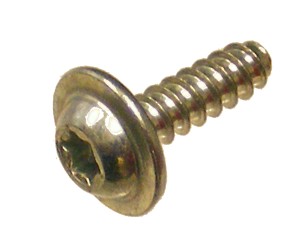

TPLAST30

506500 image

4.0 1.79 13 T20 6-lobe

steel

ford

RoHS Compliant

Yes

clear 805065 TPLAST30, 4.0-1.79x13, wshr hd, t20 6-lobe 8,000 1.65
THREAD FORMING TPLAST60 SCREWS ROUND SHANK

TPLAST60

505500 image

2.2 0.8 10 PHIL

steel

gmw25

jis

RoHS Compliant

Yes

Clear 805055 TPLAST60, 2.2-0.8x10, Pan Flg HD, Phil Drive, Type AB Point, Zn Triv Clear 40,000 0.33

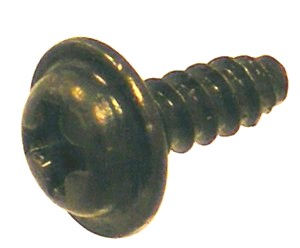

TPLAST60

506400 image

805064

3.1 1.2 10 PHIL

steel

gmw25

jis

RoHS Compliant

Yes

black 805064 TPLAST60, 3.1x1.2x10, rnd WSHR HD, Phil Drive, Type B Point, Zn Triv black 20,000 0.90

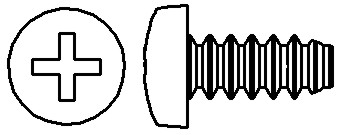

TPLAST60

506700

805067

4.2 1.41 08 PHIL

steel

gmw25

RoHS Compliant

Yes

Black 805067 TPLAST60, 4.2-1.41x8, PAN PHIL HD, BLACK E-COAT 10,000

TPLAST60

504000 image

4.2 1.41 16 PHIL

steel

gmw25

RoHS Compliant

Yes

Black 805040 TPLAST60, 4.2x1.41x16, Phil Drive, Type BR Point, Type 1A Cross Recess, 11609458 6,000 2.02

TPLAST60

503300 image

4.2 1.41 16 HEX

steel

gmw25

RoHS Compliant

Yes

Black 805033 TPLAST60, 4.2-1.41x16, Hex Flg HD, Radial Point 6,000 2.47

TPLAST60

504000 image

4.2 1.41 16 PHIL

steel

gmw25

RoHS Compliant

Yes

Black 805040 TPLAST60, 4.2x1.41x16, Phil Drive, Type BR Point, Type 1A Cross Recess, 11609458 6,000 2.02

TPLAST60

503700 image

4.2 1.41 20 HEX

steel

gmw25

RoHS Compliant

Yes

Black 805037 TPLAST60, 4.2x1.41x20, Washer Sems, Hex HD, Type BR Point, 11589015 5,000 3.00

TPLAST60

504100 image

4.2 1.41 20 PHIL

steel

gmw25

RoHS Compliant

Yes

Black 805041 TPLAST60, 4.2x1.41x20, Phil Drive, Type BR Point, Type 1A Cross Recess, 11516637 6,000 2.00

TPLAST60

506100 image

4.8 1.6 16 HEX

steel

gmw25

RoHS Compliant

Yes

Black 805061 TPLAST60, 4.8-1.6x16,Hex Flg HD, TYPE B Point 7,000 2.72

TPLAST60

501500 image

5.0 1.6 16 PHIL

steel

nissan

jis

RoHS Compliant

Yes

Clear 805015 TPLAST60, M5x16, Truss HD, Cross Recess 6,000 3.00
HIGH LOW SCREWS ROUND SHANK

TPLAST

HIGH LOW

500400 image

4.2 1.41 10 HEX

steel

gmw25

RoHS Compliant

Yes

Black 805004-10 TPLAST HIGH LOW, 4.2x10, Washer Sems, Hex HD, 11516642 6,000

TPLAST

HIGH LOW

500400 image

4.2 1.41 13 HEX

steel

gmw25

RoHS Compliant

Yes

Black 805004-13 TPLAST HIGH LOW, 4.2x13, Washer Sems, Hex HD, 11516643 6,000

TPLAST

HIGH LOW

500500 image

4.2 1.41 13 PHIL

steel

gmw25

RoHS Compliant

Yes

Black 805005-13 TPLAST HIGH LOW, 4.2x13, Flg HD, Phil Drive, 11509231 10,000

TPLAST

HIGH LOW

500400 image

4.2 1.41 16 HEX

steel

gmw25

RoHS Compliant

Yes

Black 805004 TPLAST HIGH LOW, 4.2x16, Washer Sems, Hex HD ref 11515312/11609461 6,000 2.30

TPLAST

HIGH LOW

500500 image

4.2 1.41 16 PHIL

steel

gmw25

RoHS Compliant

Yes

Black 805005 TPLAST HIGH LOW, 4.2x16,Flg HD, Phil Drive,  11515890 10,000 2.00

TPLAST

HIGH LOW

500500 image

4.2 1.41 16 PHIL

steel

gmw25

RoHS Compliant

Yes

Black 805005-10 TPLAST HIGH LOW, 4.2x16, Flg HD, Phil Drive, 11509253 10,000 1.50

TPLAST

HIGH LOW

504200 image

4.2 1.41 16 HEX

steel

gmw25

RoHS Compliant

Yes

Black 805042 TPLAST HIGH LOW, 4.2-1.41x16, Hex HD, 11515890 MOD 8,000 1.84

TPLAST

HIGH LOW

500400 image

4.2 1.41 20 HEX

steel

gmw25

RoHS Compliant

Yes

Black 805004-20 TPLAST HIGH LOW, 4.2x20,Washer Sems, Hex HD, 11515109 2,500 2.63

TPLAST

HIGH LOW

500500 image

4.2 1.41 20 PHIL

steel

gmw25

RoHS Compliant

Yes

Black 805005-20 TPLAST HIGH LOW, 4.2x20, Flg HD, Phil Drive, 11514537 10,000
HITORQ SCREWS ROUND SHANK

TPLAST

HITORQ

501700 image

4.5 1.5 12 TX

steel

ford

RoHS Compliant

Yes

Black 805017-12 TPLAST HITORQ, M4.5-1.5x12, Truss HD, 6 Lobe Drive, Serr Uhd, Zn 500 2.26

TPLAST

HITORQ

501700 image

4.5 1.5 14 TX

steel

ford

RoHS Compliant

Yes

Black 805017 TPLAST HITORQ, M4.5-1.5x14, Truss HD, 6 Lobe Drive 6,000 2.41

TPLAST

HITORQ

501700 image

4.5 1.5 16 TX

steel

ford

RoHS Compliant

Yes

Black 805017-16 TPLAST HITORQ, M4.5-1.5x16, Truss HD, 6 Lobe Drive, Serr Uhd, Zn 500 2.45

TPLAST

HITORQ

501400 image

4.5 1.5 20 HEX

steel

ford

RoHS Compliant

Yes

Black 805014a TPLAST HITORQ, M4.5-1.5x20, Hex HD, Serr Uhd 4,700 3.20
